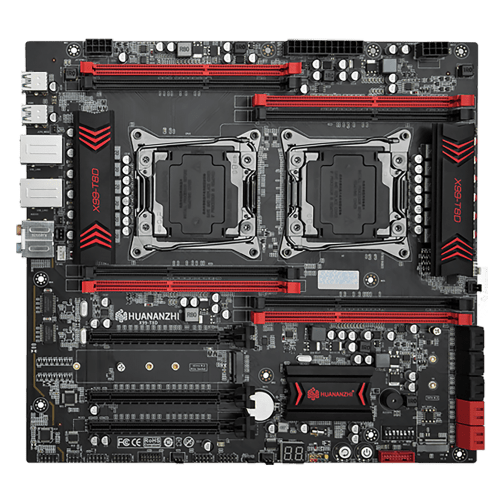

HUANANZHI X99 T8D
Supports LGA2011-3 series processors
Server-level CPU create extreme reliability, quickly edit images and videos, quickly multitask between programs, and show your creativity.
*Non supports: Core™ Processor and Xeon® E5-16XXv3 series.
Support NVIDIA and AMD series graphics cards
Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC PC and ECC Server memory
Support DDR3 memory, 4 channel up to 8 x 32GB, supports ECC memory modules, with memory error correction.
Ultra-fast PCIe M.2 (NVMe) slot design
HUANANZHI M.2 solution, provide ultra-high storage performance, it can support PCIe or SATA M.2 solid state drives.
Built-in LED debug indicator display (embedded LED POST code display) on the motherboard, a simple code to display the status of the motherboard, allows you to more easily grasp the system status.
Nonotree is your most powerful support, professional warranty inquiry system.
HUANANZHI X99 T8D
|Platform||Intel® X99, 2 x LGA2011-3
Non supports: Core™ Processor and Xeon® E5-16XX v3 series.
|Memory||8 x DIMM, Max. 8 x 32GB, DDR3 1866/1600/1333 MHz,
Supports ECC or non-ECC Memory, 4 Channel Memory Architecture
* CPU Support for DDR3: E5-2678v3 / 2696v3 / 2629v3 / 2649v3 / 2649v3 / 2669v3 / 2676v3 / 2673v3
|Graphic||No display output port
Supports NVIDIA® and AMD® Graphics Cards
|Audio||Realtek® ALC887 7.1-Channel, High Definition Audio CODEC|
|LAN||Realtek® RTL8111H, 2 x 10/100/1000 Mbit/s LAN Controller(s)|
|Expansion Slots||3 x PCIe 3.0 x16|
|Storage||10 x SATA3.0 (6GB/s) port(s)
1 x M.2 Socket 3, NVMe
1 x M.2 Socket 2, SATA
|Internal I/O Ports||2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s)
2 x CPU Fan connector(s) (1 x 4-pin)
4 x Chassis Fan connector(s) (1 x 4-pin)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x POST codes display LED

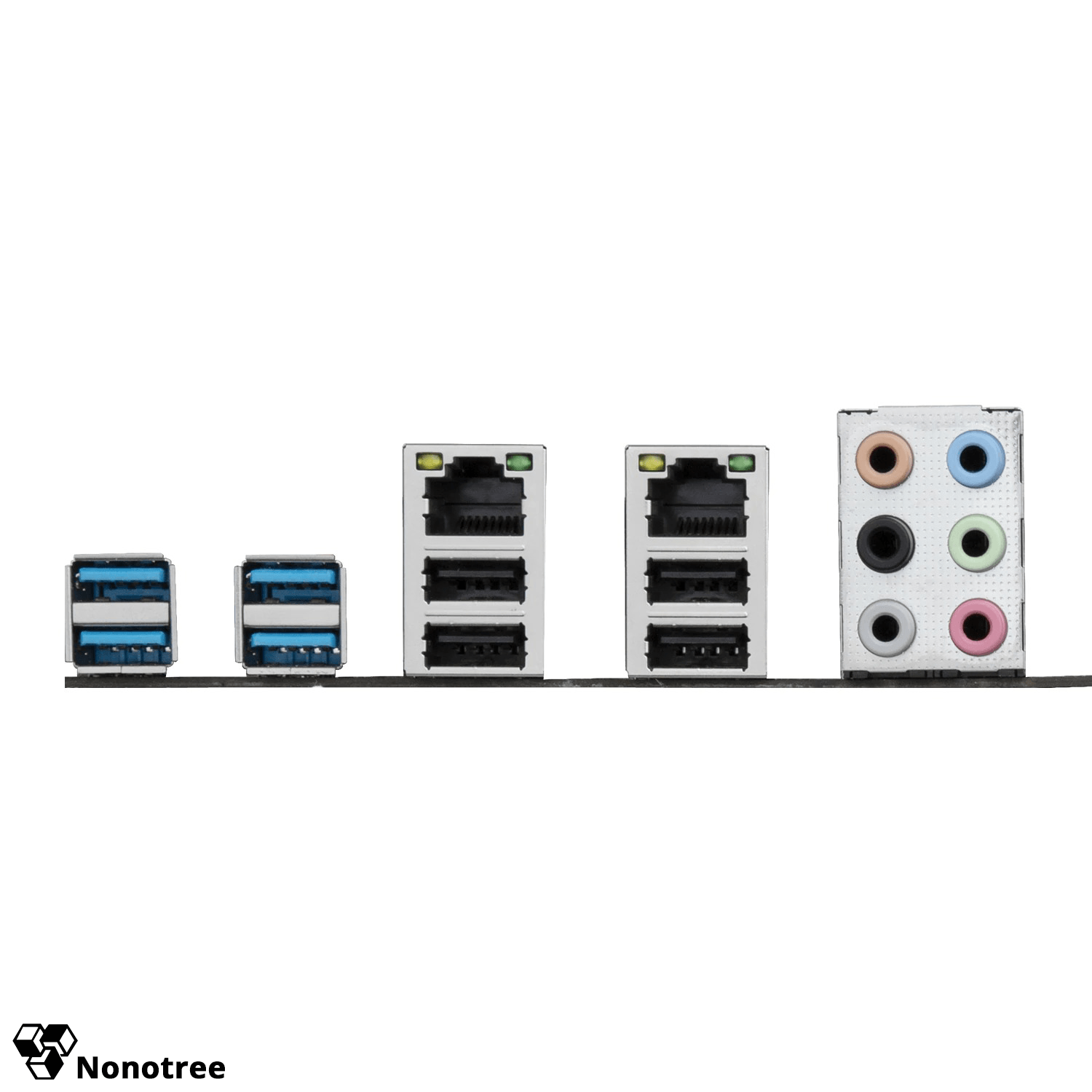

|Back I/O Ports||2 x LAN (RJ45) port(s)
4 x USB 2.0
4 x USB 3.0
6 x Audio jack(s)
|Form Factor||Extended ATX Form Factor; 30cm x 32cm|
|Packing list||1 x I/O Shield, 2 x SATA Cable, 1 x Manual|
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
Intel® X99, 2 x LGA2011-3,
8 x DIMM, Max. 8 x 32GB, DDR3 1866/1600/1333 MHz,
No display output port,
Realtek® ALC887 7.1-Channel, High Definition Audio CODEC
Realtek® RTL8111H, 2 x 10/100/1000 Mbit/s LAN Controller(s)
3 x PCIe 3.0 x16
1 x M.2 Socket 3, NVMe,
|Internal I/O Ports||
2 x USB 2.0 connector support additional 2 x USB 2.0
|Back I/O Ports||
2 x LAN (RJ45) port(s)
E-ATX Form Factor; 30cm x 32cm
Driver & Manual
The following table shows the supported CPUs for this motherboard Click here to search other motherboards.
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.
|CPU||Cores/Threads||Base Frequency||Turbo Frequency||RAM||ECC RAM|
|Intel Xeon E5-2629 v3||8C/16T||2.40GHz||2.60GHz||DDR3 1866||Support|
|Intel Xeon E5-2649 v3||10C/20T||2.30GHz||3.00GHz||DDR3 1866||Support|
|Intel Xeon E5-2669 v3||12C/24T||2.30GHz||2.60GHz||DDR3 1866||Support|
|Intel Xeon E5-2673 v3||12C/24T||2.40GHz||3.20GHz||DDR3 1866||Support|
|Intel Xeon E5-2676 v3||12C/24T||2.40GHz||3.00GHz||DDR3 1866||Support|
|Intel Xeon E5-2678 v3||12C/24T||2.50GHz||3.30GHz||DDR3 1866||Support|
|Intel Xeon E5-2686 v3||18C/36T||2.00GHz||3.50GHz||DDR3 1866||Support|
|Intel Xeon E5-2696 v3||18C/36T||2.30GHz||3.60GHz||DDR3 1866||Support|
