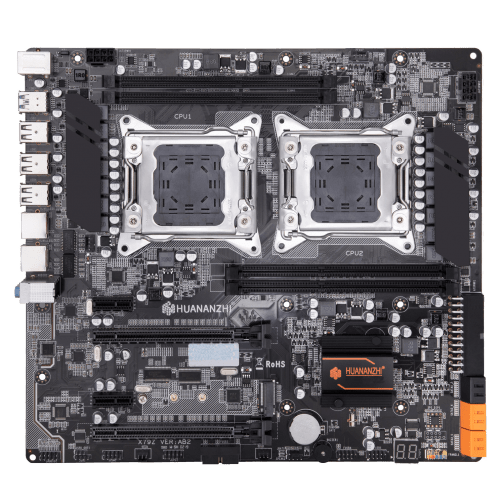

HUANANZHI X79 4D
Supports LGA2011 series processors
Provide dual Xeon® CPU overclocking function, the X79-4D improves CPU performance by providing incredible system speed with a single BIOS model.
Smooth multitasking
From files to videos, from games to web pages, so you can open multiple projects at the same time, no longer slowly improve work efficiency.
Support NVIDIA and AMD series graphics cards, Improve your gaming experience
Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC PC and ECC Server memory
Support DDR3 memory, also supports ECC memory modules, with memory error correction. ECC RAM is different as it has an additional memory chip which acts as both error detection and correction for the other eight RAM chips.
Ultra-fast PCIe M.2 (NVMe) slot design
South China Gold M.2 solution, provide ultra-high storage performance, it can support PCIe or SATA M.2 solid state drives.
Onboard POST code display LED (Post codes display LED)
Built-in LED debug indicator display (embedded LED POST code display) on the motherboard, a simple code to display the status of the motherboard, allows you to more easily grasp the system status.
Nonotree is your most powerful support, professional warranty inquiry system.
HUANANZHI X79 4D
Mainboard | HUANANZHI X79-4D |
Platform | Intel® X79, 2 x LGA2011
Non supports: Core™ Processor and Xeon® E5-16XX series. |
Memory | 4 x DIMM, Max. 4 x 32GB, DDR3 1866/1600/1333 MHz,
Supports ECC or non-ECC Memory, Dual Channel Memory Architecture |
Graphic | No display output port
Supports NVIDIA® and AMD® Graphics Cards |
Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
LAN | Realtek® RTL8111H, 2 x 10/100/1000 Mbit/s LAN Controller(s) |
Expansion Slots | 2 x PCIe 3.0 x16
2 x PCIe x1 |
Storage | 4 x SATA2.0 (3GB/s) port(s)
2 x SATA3.0 (6GB/s) port(s) 1 x M.2 Socket 3, NVMe |
Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 2 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x POST codes display LED |
Back I/O Ports | 1 x PS/2 Keyboard and Mouse port
2 x LAN (RJ45) port(s) 6 x USB 2.0 2 x USB 3.0 3 x Audio jack(s) |
Form Factor | Extended ATX Form Factor; 26.5cm x 29cm |
Packing list | 1 x I/O Shield, 2 x SATA Cable, 1 x Manual |
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
Mainboard | HUANANZHI X79-4D |
---|---|
Platform | Intel® X79, 2 x LGA2011, |
Memory | 4 x DIMM, Max. 4 x 32GB, DDR3 1866/1600/1333 MHz, |
Graphic | No display output port, |
Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
LAN | Realtek® RTL8111H, 2 x 10/100/1000 Mbit/s LAN Controller(s) |
Expansion Slots | 2 x PCIe 3.0 x16, |
Storage | 1 x M.2 Socket 3, NVMe, |
Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 |
Back I/O Ports | 1 x PS/2 Keyboard and Mouse |
Form Factor | E-ATX Form Factor; 26.5cm x 29cm |
Driver & Manual
CPU Support
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.CPU | Cores/Threads | Base Frequency | Turbo Frequency | RAM | ECC RAM |
Intel Xeon E5-2603 | 4C/4T | 1.80GHz | DDR3 800/1066 | Support | |
Intel Xeon E5-2603 v2 | 4C/4T | 1.80GHz | DDR3 800/1066/1333 | Support | |
Intel Xeon E5-2609 | 4C/4T | 2.40GHz | DDR3 800/1066 | Support | |
Intel Xeon E5-2609 v2 | 4C/4T | 2.50GHz | 2.50GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-2618L v2 | 6C/12T | 2.00GHz | 2.00GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-2620 | 6C/12T | 2.00GHz | 2.50GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-2620 v2 | 6C/12T | 2.10GHz | 2.60GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2628L v2 | 8C/16T | 1.90GHz | 2.40GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2630 | 6C/12T | 2.30GHz | 2.80GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-2630 v2 | 6C/12T | 2.60GHz | 3.10GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2630L | 6C/12T | 2.00GHz | 2.50GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-2630L v2 | 6C/12T | 2.40GHz | 2.80GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2637 | 2C/4T | 3.00GHz | 3.50GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2637 v2 | 4C/8T | 3.50GHz | 3.80GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2640 | 6C/12T | 2.50GHz | 3.00GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-2640 v2 | 8C/16T | 2.00GHz | 2.50GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2643 | 4C/8T | 3.30GHz | 3.50GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2643 v2 | 6C/12T | 3.50GHz | 3.80GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2648L | 8C/16T | 1.80GHz | 2.10GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2648L v2 | 10C/20T | 1.90GHz | 2.50GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2650 | 8C/16T | 2.00GHz | 2.80GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2650 v2 | 8C/16T | 2.60GHz | 3.40GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2650L | 8C/16T | 1.80GHz | 2.30GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2650L v2 | 10C/20T | 1.70GHz | 2.10GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2658 | 8C/16T | 2.10GHz | 2.40GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2658 v2 | 10C/20T | 2.40GHz | 3.00GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2660 | 8C/16T | 2.20GHz | 3.00GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2660 v2 | 10C/20T | 2.20GHz | 3.00GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2665 | 8C/16T | 2.40GHz | 3.10GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2667 | 6C/12T | 2.90GHz | 3.50GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2667 v2 | 8C/16T | 3.30GHz | 4.00GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2670 | 8C/16T | 2.60GHz | 3.30GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2670 v2 | 10C/20T | 2.50GHz | 3.30GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2680 | 8C/16T | 2.70GHz | 3.50GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2680 v2 | 10C/20T | 2.80GHz | 3.60GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2687W | 8C/16T | 3.10GHz | 3.80GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2687W v2 | 8C/16T | 3.40GHz | 4.00GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2689 | 8C/16T | 2.60GHz | 3.60GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2690 | 8C/16T | 2.90GHz | 3.80GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-2690 v2 | 10C/20T | 3.00GHz | 3.60GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2695 v2 | 12C/24T | 2.40GHz | 3.20GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2696 v2 | 12C/24T | 2.50GHz | 3.50GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-2697 v2 | 12C/24T | 2.70GHz | 3.50GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-4603 | 4C/8T | 2.00GHz | DDR3 800/1066 | Support | |
Intel Xeon E5-4603 v2 | 4C/8T | 2.20GHz | 2.20GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-4607 | 6C/12T | 2.20GHz | DDR3 800/1066 | Support | |
Intel Xeon E5-4607 v2 | 6C/12T | 2.60GHz | 2.60GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-4610 | 6C/12T | 2.40GHz | 2.90GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-4610 v2 | 8C/16T | 2.30GHz | 2.70GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-4617 | 6C/6T | 2.90GHz | 3.40GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-4620 | 8C/16T | 2.20GHz | 2.60GHz | DDR3 800/1066/1333 | Support |
Intel Xeon E5-4620 v2 | 8C/16T | 2.60GHz | 3.00GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-4624L v2 | 10C/20T | 1.90GHz | 2.50GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-4627 v2 | 8C/8T | 3.30GHz | 3.60GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-4640 | 8C/16T | 2.40GHz | 2.80GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-4640 v2 | 10C/20T | 2.20GHz | 2.70GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-4650 | 8C/16T | 2.70GHz | 3.30GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-4650 v2 | 10C/20T | 2.40GHz | 2.90GHz | DDR3 800/1066/1333/1600/1866 | Support |
Intel Xeon E5-4650L | 8C/16T | 2.60GHz | 3.10GHz | DDR3 800/1066/1333/1600 | Support |
Intel Xeon E5-4657L v2 | 12C/24T | 2.40GHz | 2.90GHz | DDR3 800/1066/1333/1600/1866 | Support |
