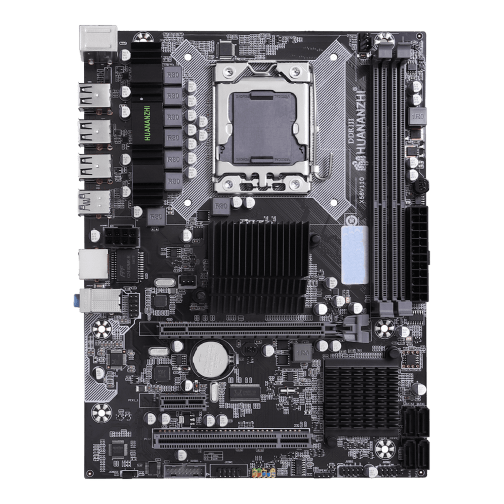

HUANANZHI X58 RX3.0
Supports LGA1366 series processors
Server-level processors create extreme reliability, quickly edit images and videos, quickly multitask between programs, and show your creativity.
Smooth multitasking
From files to videos, from games to web pages, so you can open multiple projects at the same time, no longer slowly improve work efficiency.
Support NVIDIA and AMD series graphics cards, Improve your gaming experience
Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC PC and ECC Server memory
Support DDR3 memory, also supports ECC memory modules, with memory error correction. ECC RAM is different as it has an additional memory chip which acts as both error detection and correction for the other eight RAM chips.
Nonotree is your most powerful support, professional warranty inquiry system.
HUANANZHI X58 RX3.0
| Mainboard | HUANANZHI X58-RX3.0 |
| Platform | Intel® X58, LGA1366 |
| Memory | 2 x DIMM, Max. 32GB, DDR3 1333/1066 MHz,
Supports ECC or non-ECC Memory, Dual Channel Memory Architecture |
| Graphic | No display output port
Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111E, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe x1 1 x PCI |
| Storage | 4 x SATA2.0 (3GB/s) port(s) |
| Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse port
1 x LAN (RJ45) port(s) 6 x USB 2.0 2 x USB 3.0 3 x Audio jack(s) |
| Form Factor | Micro ATX Form Factor; 25cm x 18.5cm |
| Packing list | 1 x I/O Shield, 1 x SATA Cable, 1 x Manual |
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
| Mainboard | HUANANZHI X58-RX3.0 |
|---|---|
| Platform | Intel® X58, LGA1366 |
| Memory | 2 x DIMM, Max. 32GB, DDR3 1333/1066 MHz, |
| Graphic | No display output port, |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16, |
| Storage | 4 x SATA2.0 (3GB/s) port(s) |
| Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse |
| Form Factor | Micro ATX Form Factor; 25cm x 18.5cm |
Driver & Manual
|
HUANANZHI X58 RX3.0-CHIPSET Update：2020/05/01 2.65 MBytes |
|
|
HUANANZHI X58 RX3.0-USB3.0 Update：2020/05/01 127.57 MBytes |
|
|
HUANANZHI X58 RX3.0-USB3.0 Update：2020/05/01 10.93 MBytes |
|
|
HUANANZHI X58 RX3.0-USB3.0 Update：2020/05/01 11.31 MBytes |
|
|
HUANANZHI X58 RX3.0-BIOS Update：2020/11/29 610.36 KBytes |
|
|
HUANANZHI X58 RX3.0 User’s manual Update：2020/05/01 14.02 MBytes |
|
CPU Support
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.| CPU | Cores/Threads | Base Frequency | Turbo Frequency | RAM | ECC RAM |
| Intel Celeron P1053 | 1C/2T | 1.33GHz | DDR3 800 | Support | |
| Intel Core i7-920 | 4C/8T | 2.66GHz | 2.93GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-930 | 4C/8T | 2.80GHz | 3.06GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-940 | 4C/8T | 2.93GHz | 3.20GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-950 | 4C/8T | 3.06GHz | 3.33GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-960 | 4C/8T | 3.20GHz | 3.46GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-965 | 4C/8T | 3.20GHz | 3.46GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-970 | 6C/12T | 3.20GHz | 3.46GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-975 | 4C/8T | 3.33GHz | 3.60GHz | DDR3 800/1066 | Nonsupport |
| Intel Core i7-980 | 6C/12T | 3.33GHz | 3.60GHz | DDR3 1066 | Nonsupport |
| Intel Core i7-980X | 6C/12T | 3.33GHz | 3.60GHz | DDR3 1066 | Nonsupport |
| Intel Core i7-990X | 6C/12T | 3.46GHz | 3.73GHz | DDR3 1066 | Nonsupport |
| Intel Xeon E5502 | 2C/2T | 1.86GHz | DDR3 800 | Support | |
| Intel Xeon E5503 | 2C/2T | 2.00GHz | DDR3 800 | Support | |
| Intel Xeon E5504 | 4C/4T | 2.00GHz | DDR3 800 | Support | |
| Intel Xeon E5506 | 4C/4T | 2.13GHz | DDR3 800 | Support | |
| Intel Xeon E5507 | 4C/4T | 2.26GHz | DDR3 800 | Support | |
| Intel Xeon E5520 | 4C/8T | 2.26GHz | 2.53GHz | DDR3 800/1066 | Support |
| Intel Xeon E5530 | 4C/8T | 2.40GHz | 2.66GHz | DDR3 800/1066 | Support |
| Intel Xeon E5540 | 4C/8T | 2.53GHz | 2.80GHz | DDR3 800/1066 | Support |
| Intel Xeon E5603 | 4C/4T | 1.60GHz | DDR3 800/1066 | Support | |
| Intel Xeon E5606 | 4C/4T | 2.13GHz | DDR3 800/1066 | Support | |
| Intel Xeon E5607 | 4C/4T | 2.26GHz | DDR3 800/1066 | Support | |
| Intel Xeon E5620 | 4C/8T | 2.40GHz | 2.66GHz | DDR3 800/1066 | Support |
| Intel Xeon E5630 | 4C/8T | 2.53GHz | 2.80GHz | DDR3 800/1066 | Support |
| Intel Xeon E5640 | 4C/8T | 2.66GHz | 2.93GHz | DDR3 800/1066 | Support |
| Intel Xeon E5645 | 6C/12T | 2.40GHz | 2.67GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon E5649 | 6C/12T | 2.53GHz | 2.93GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon EC3539 | 4C/4T | 2.13GHz | DDR3 800/1066 | Support | |
| Intel Xeon EC5509 | 4C/4T | 2.00GHz | DDR3 800/1066 | Support | |
| Intel Xeon EC5539 | 2C/2T | 2.27GHz | DDR3 800/1066/1333 | Support | |
| Intel Xeon EC5549 | 4C/8T | 2.53GHz | 2.93GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon L5506 | 4C/4T | 2.13GHz | DDR3 800 | Support | |
| Intel Xeon L5508 | 2C/4T | 2.00GHz | 2.40GHz | DDR3 800/1066 | Support |
| Intel Xeon L5518 | 4C/8T | 2.13GHz | 2.40GHz | DDR3 800/1066 | Support |
| Intel Xeon L5520 | 4C/8T | 2.26GHz | 2.48GHz | DDR3 800/1066 | Support |
| Intel Xeon L5530 | 4C/8T | 2.40GHz | 2.66GHz | DDR3 800/1066 | Support |
| Intel Xeon L5609 | 4C/4T | 1.86GHz | 1.86GHz | DDR3 800/1066 | Support |
| Intel Xeon L5618 | 4C/8T | 1.87GHz | 2.26GHz | DDR3 1066 | Support |
| Intel Xeon L5630 | 4C/8T | 2.13GHz | 2.40GHz | DDR3 800/1066 | Support |
| Intel Xeon L5638 | 6C/12T | 2.00GHz | 2.40GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon L5640 | 6C/12T | 2.26GHz | 2.80GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon LC3518 | 1C/1T | 1.73GHz | DDR3 800 | Support | |
| Intel Xeon LC3528 | 2C/4T | 1.73GHz | 1.87GHz | DDR3 800/1066 | Support |
| Intel Xeon LC5518 | 4C/8T | 1.73GHz | 2.13GHz | DDR3 800/1066 | Support |
| Intel Xeon LC5528 | 4C/8T | 2.13GHz | 2.53GHz | DDR3 800/1066 | Support |
| Intel Xeon W3520 | 4C/8T | 2.66GHz | 2.93GHz | DDR3 800/1066 | Support |
| Intel Xeon W3530 | 4C/8T | 2.80GHz | 3.06GHz | DDR3 800/1066 | Support |
| Intel Xeon W3540 | 4C/8T | 2.93GHz | 3.20GHz | DDR3 800/1066 | Support |
| Intel Xeon W3550 | 4C/8T | 3.06GHz | 3.33GHz | DDR3 800/1066 | Support |
| Intel Xeon W3565 | 4C/8T | 3.20GHz | 3.46GHz | DDR3 800/1066 | Support |
| Intel Xeon W3570 | 4C/8T | 3.20GHz | 3.46GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon W3580 | 4C/8T | 3.33GHz | 3.60GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon W3670 | 6C/12T | 3.20GHz | 3.46GHz | DDR3 800/1066 | Support |
| Intel Xeon W3680 | 6C/12T | 3.33GHz | 3.60GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon W3690 | 6C/12T | 3.46GHz | 3.73GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon W5580 | 4C/8T | 3.20GHz | 3.46GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon W5590 | 4C/8T | 3.33GHz | 3.60GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5550 | 4C/8T | 2.66GHz | 3.06GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5560 | 4C/8T | 2.80GHz | 3.20GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5570 | 4C/8T | 2.93GHz | 3.33GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5647 | 4C/8T | 2.93GHz | 3.20GHz | DDR3 800/1066 | Support |
| Intel Xeon X5650 | 6C/12T | 2.66GHz | 3.06GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5660 | 6C/12T | 2.80GHz | 3.20GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5667 | 4C/8T | 3.06GHz | 3.46GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5670 | 6C/12T | 2.93GHz | 3.33GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5672 | 4C/8T | 3.20GHz | 3.60GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5675 | 6C/12T | 3.06GHz | 3.46GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5677 | 4C/8T | 3.46GHz | 3.73GHz | DDR3 800/1066/1333 | Support |
| Intel Xeon X5680 | 6C/12T | 3.33GHz | 3.60GHz | DDR3 800/1066/1333 | Support |
