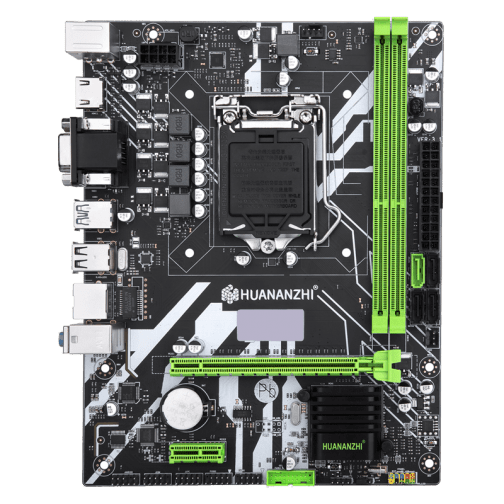

HUANANZHI B75 PLUS v3.1
Supports LGA1155 series processors
Quickly edit images and videos, quickly multitask between programs, and show your creativity.
Support NVIDIA and AMD series graphics cards
The cpu has Integrated Graphics output VGA / HDMI. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC PC memory
Support DDR3 memory, 2 channel up to 16GB
Nonotree is your most powerful support, professional warranty inquiry system.
HUANANZHI B75 PLUS v3.1
| Mainboard | HUANANZHI B75 PLUS v3.1 |
| Platform | Intel® B75, LGA1155 |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz,
Supports non-ECC Memory, Dual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor
1 x VGA port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe x1 |
| Storage | 3 x SATA2.0 (3GB/s) port(s)
1 x SATA3.0 (6GB/s) port(s) |
| Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse port
1 x LAN (RJ45) port(s) 2 x USB 2.0 2 x USB 3.0 3 x Audio jack(s) |
| Form Factor | Micro ATX Form Factor; 21.8cm x 16.8cm |
| Packing list | 1 x I/O Shield, 1 x SATA Cable, 1 x Manual |
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
| Mainboard | HUANANZHI B75 Plus v3.1 |
|---|---|
| Platform | Intel® B75, LGA1155 |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, |
| Graphic | Integrated Graphics Processor, 1 x COM port, 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16, |
| Storage | 3 x SATA2.0 (3GB/s) port(s), |
| Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse |
| Form Factor | Micro ATX Form Factor; 21.8cm x 16.8cm |
Driver & Manual
| HUANANZHI B75 PLUS v3.1-CHIPSET Update：2020/12/21 2.03 MBytes |
 |
| HUANANZHI B75 PLUS v3.1-AUDIO Update：2020/12/21 225.10 MBytes |
|
| HUANANZHI B75 PLUS v3.1-LAN Update：2020/12/21 5.51 MBytes |
|
| HUANANZHI B75 PLUS v3.1-BIOS Update：2020/12/21 2.75 MBytes |
|
CPU Support
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.| CPU | Cores/Threads | Base Frequency | Turbo Frequency | RAM | ECC RAM |
| Intel Celeron G440 | 1C/1T | 1.60GHz | DDR3 1066 | Nonsupport | |
| Intel Celeron G460 | 1C/2T | 1.80GHz | DDR3 1066 | Nonsupport | |
| Intel Celeron G530 | 2C/2T | 2.40GHz | DDR3 1066 | Nonsupport | |
| Intel Celeron G530T | 2C/2T | 2.00GHz | DDR3 1066 | Nonsupport | |
| Intel Celeron G540 | 2C/2T | 2.50GHz | DDR3 1066 | Nonsupport | |
| Intel Core i3-2100 | 2C/4T | 3.10GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Core i3-2102 | 2C/4T | 3.10GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Core i3-2105 | 2C/4T | 3.10GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Core i3-2120 | 2C/4T | 3.30GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Core i3-2120T | 2C/4T | 2.60GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Core i3-2125 | 2C/4T | 3.30GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Core i3-2130 | 2C/4T | 3.40GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Core i5-2390T | 2C/4T | 2.70GHz | 3.50GHz | DDR3 1066/1333 | Nonsupport |
| Intel Core i5-2405S | 4C/4T | 2.50GHz | 3.30GHz | DDR3 1066/1333 | Nonsupport |
| Intel Core i5-3450 | 4C/4T | 3.10GHz | 3.50GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3450S | 4C/4T | 2.80GHz | 3.50GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3470 | 4C/4T | 3.20GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3470 | 4C/4T | 3.20GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3470S | 4C/4T | 2.90GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3470S | 4C/4T | 2.90GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3470T | 2C/4T | 2.90GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3470T | 2C/4T | 2.90GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3475S | 4C/4T | 2.90GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3475S | 4C/4T | 2.90GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3550 | 4C/4T | 3.30GHz | 3.70GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3550S | 4C/4T | 3.00GHz | 3.70GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3570 | 4C/4T | 3.40GHz | 3.80GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3570 | 4C/4T | 3.40GHz | 3.80GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3570K | 4C/4T | 3.40GHz | 3.80GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3570S | 4C/4T | 3.10GHz | 3.80GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3570S | 4C/4T | 3.10GHz | 3.80GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i5-3570T | 4C/4T | 2.30GHz | 3.30GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i7-3770 | 4C/8T | 3.40GHz | 3.90GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i7-3770K | 4C/8T | 3.50GHz | 3.90GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i7-3770S | 4C/8T | 3.10GHz | 3.90GHz | DDR3 1333/1600 | Nonsupport |
| Intel Core i7-3770T | 4C/8T | 2.50GHz | 3.70GHz | DDR3 1333/1600 | Nonsupport |
| Intel Pentium G620 | 2C/2T | 2.60GHz | DDR3 1066 | Nonsupport | |
| Intel Pentium G620T | 2C/2T | 2.20GHz | DDR3 1066 | Nonsupport | |
| Intel Pentium G630 | 2C/2T | 2.70GHz | DDR3 1066 | Nonsupport | |
| Intel Pentium G630T | 2C/2T | 2.30GHz | DDR3 1066 | Nonsupport | |
| Intel Pentium G632 | 2C/2T | 2.70GHz | DDR3 1066 | Nonsupport | |
| Intel Pentium G840 | 2C/2T | 2.80GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Pentium G850 | 2C/2T | 2.90GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Pentium G860 | 2C/2T | 3.00GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Pentium G860T | 2C/2T | 2.60GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Pentium G860T | 2C/2T | 2.60GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Pentium G870 | 2C/2T | 3.10GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Pentium G870 | 2C/2T | 3.10GHz | DDR3 1066/1333 | Nonsupport | |
| Intel Xeon E3-1220 v2 | 4C/4T | 3.10GHz | 3.50GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1220L | 2C/4T | 2.20GHz | 3.40GHz | DDR3 1066/1333 | Nonsupport |
| Intel Xeon E3-1220L v2 | 2C/4T | 2.30GHz | 3.50GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1225 v2 | 4C/4T | 3.20GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1225 v2 | 4C/4T | 3.20GHz | 3.60GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1230 v2 | 4C/8T | 3.30GHz | 3.70GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1230 v2 | 4C/8T | 3.30GHz | 3.70GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1240 v2 | 4C/8T | 3.40GHz | 3.80GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1245 v2 | 4C/8T | 3.40GHz | 3.80GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1265L v2 | 4C/8T | 2.50GHz | 3.50GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1270 v2 | 4C/8T | 3.50GHz | 3.90GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1275 v2 | 4C/8T | 3.50GHz | 3.90GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1280 v2 | 4C/8T | 3.60GHz | 4.00GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1280 v2 | 4C/8T | 3.60GHz | 4.00GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1290 v2 | 4C/8T | 3.70GHz | 4.10GHz | DDR3 1333/1600 | Nonsupport |
| Intel Xeon E3-1290 v2 | 4C/8T | 3.70GHz | 4.10GHz | DDR3 1333/1600 | Nonsupport |
