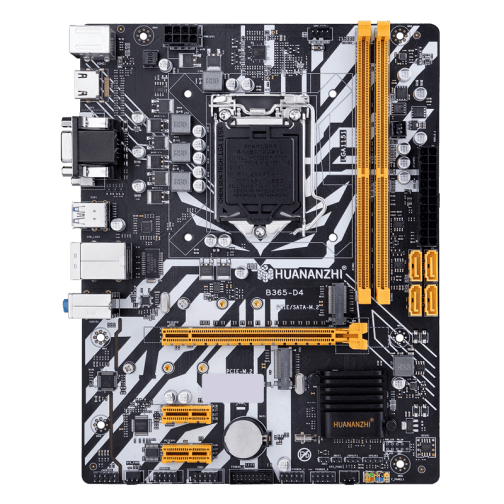

HUANANZHI B365 D4
Supports LGA1151 series processors
Quickly edit images and videos, quickly multitask between programs, and show your creativity.
Support NVIDIA and AMD series graphics cards
The cpu has Integrated Graphics output VGA / DVI-I / HDMI. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC PC memory
Support DDR4 memory, 2 channel up to 32GB
Ultra-fast PCIe M.2 (NVMe) slot design
HUANANZHI M.2 solution, provide ultra-high storage performance, it can support PCIe or SATA M.2 solid state drives.
Nonotree is your most powerful support, professional warranty inquiry system.
HUANANZHI B365 D4
| Mainboard | HUANANZHI B365-D4 |
| Platform | Intel® B365, LGA1151 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz,
Supports non-ECC Memory, Dual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor
1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe x1 |
| Storage | 4 x SATA3.0 (6GB/s) port(s)
1 x M.2 Socket 3, NVMe |
| Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) |

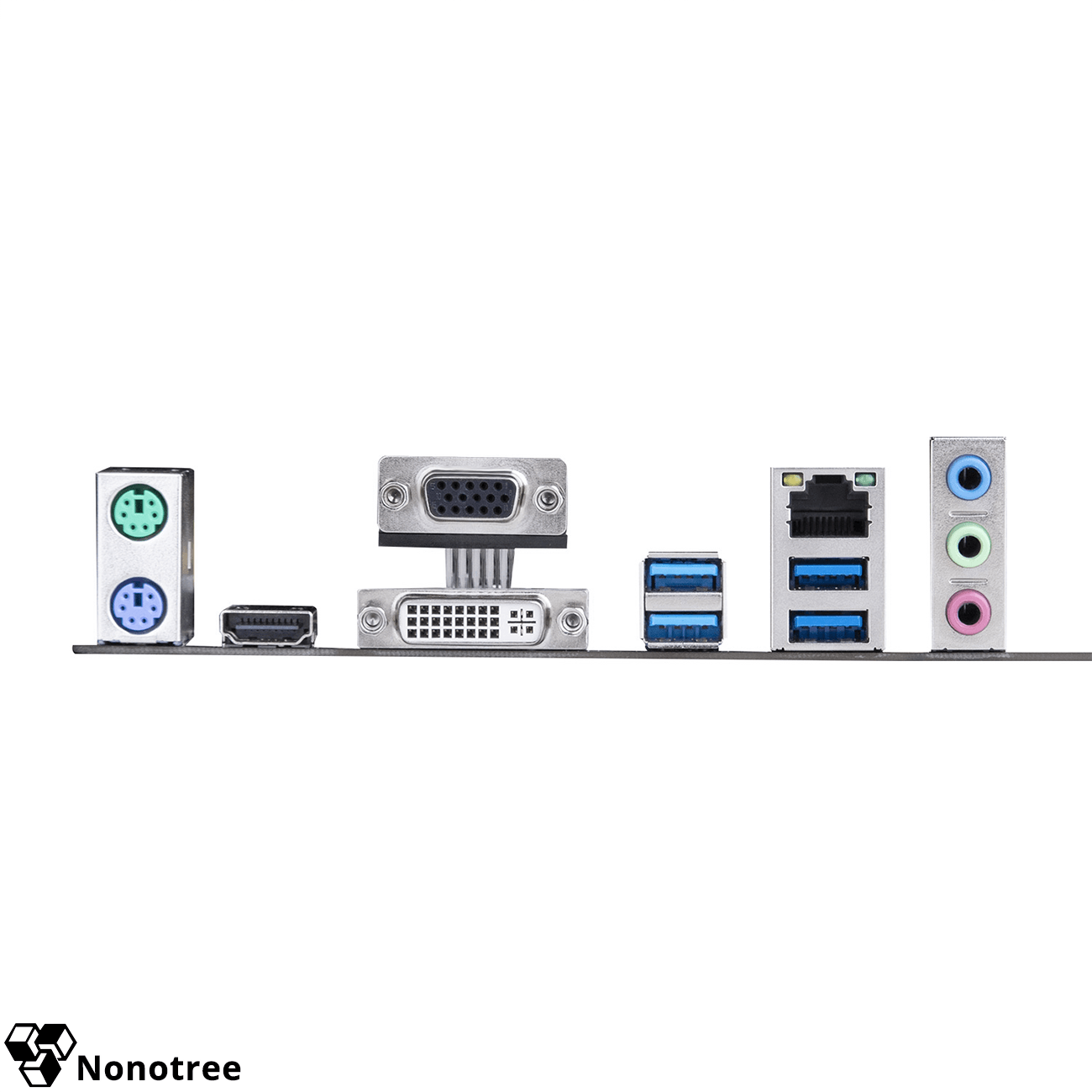

| Back I/O Ports | 1 x PS/2 Keyboard and Mouse port
1 x LAN (RJ45) port(s) 4 x USB 3.0 3 x Audio jack(s) |
| Form Factor | Micro ATX Form Factor; 21.5cm x 16.8cm |
| Packing list | 1 x I/O Shield, 1 x SATA Cable, 1 x Manual |
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
| Mainboard | HUANANZHI B365-D4 |
|---|---|
| Platform | Intel® B365-D4, LGA1151 for 6th~9th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors. |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz, |
| Graphic | Integrated Graphics Processor, 1 x DVI-I port, 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16, |
| Storage | 1 x M.2 Socket 3, NVMe, |
| Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse |
| Form Factor | Micro ATX Form Factor; 21.5cm x 16.8cm |
Driver & Manual
|
HUANANZHI B365 D4-BIOS
Update：2020/11/29 6.0 MBytes |
|
|
HUANANZHI B365 D4-AUDIO
Update：2021/01/01 529.9 MBytes |
|
|
HUANANZHI B365 D4-RST
Update：2021/01/01 142.2 MBytes |
|
|
HUANANZHI B365 D4-LAN
Update：2021/01/01 10.55 MBytes |
|
|
HUANANZHI B365 D4-USB3.0
Update：2021/01/01 5.40 MBytes |
|
|
HUANANZHI B365 D4-ME
Update：2021/01/01 2.71 MBytes |
|
|
HUANANZHI B365 D4-MEPATCH
Update：2021/01/01 1.49 MBytes |
|
|
HUANANZHI B365 D4 Users manual
Update：2021/01/01 64.56 MBytes |
|
CPU Support
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.| CPU | Cores/Threads | Base Frequency | Turbo Frequency | RAM | ECC RAM |
| Intel Celeron G4950 | 2C/2T | 3.30GHz | DDR4 2400 | Nonsupport | |
| Intel Core i3-6100 | 2C/4T | 3.70GHz | DDR4 1866/2133 | Nonsupport | |
| Intel Core i3-6100T | 2C/4T | 3.20GHz | DDR4 1866/2133 | Nonsupport | |
| Intel Core i3-6300 | 2C/4T | 3.80GHz | DDR4 1866/2133 | Nonsupport | |
| Intel Core i3-6300T | 2C/4T | 3.30GHz | DDR4 1866/2133 | Nonsupport | |
| Intel Core i3-6320 | 2C/4T | 3.90GHz | DDR4 1866/2133 | Nonsupport | |
| Intel Core i3-8100T | 4C/4T | 3.10GHz | DDR4 2400 | Nonsupport | |
| Intel Core i3-8300 | 4C/4T | 3.70GHz | DDR4 2400 | Nonsupport | |
| Intel Core i3-8300T | 4C/4T | 3.20GHz | DDR4 2400 | Nonsupport | |
| Intel Core i3-9100 | 4C/4T | 3.60GHz | 4.20GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9100E | 4C/4T | 3.10GHz | 3.70GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9100F | 4C/4T | 3.60GHz | 4.20GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9100T | 4C/4T | 3.10GHz | 3.70GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9100TE | 4C/4T | 2.20GHz | 3.20GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9300 | 4C/4T | 3.70GHz | 4.30GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9300T | 4C/4T | 3.20GHz | 3.80GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9320 | 4C/4T | 3.70GHz | 4.40GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9350K | 4C/4T | 4.00GHz | 4.60GHz | DDR4 2400 | Nonsupport |
| Intel Core i3-9350KF | 4C/4T | 4.00GHz | 4.60GHz | DDR4 2400 | Nonsupport |
| Intel Core i5-6400T | 4C/4T | 2.20GHz | 2.80GHz | DDR4 1866/2133 | Nonsupport |
| Intel Core i5-6600 | 4C/4T | 3.30GHz | 3.90GHz | DDR4 1866/2133 | Nonsupport |
| Intel Core i5-6600K | 4C/4T | 3.50GHz | 3.90GHz | DDR4 1866/2133 | Nonsupport |
| Intel Core i5-8400T | 6C/6T | 1.70GHz | 3.30GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-8600 | 6C/6T | 3.10GHz | 4.30GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-8600T | 6C/6T | 2.30GHz | 3.70GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9400 | 6C/6T | 2.90GHz | 4.10GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9400F | 6C/6T | 2.90GHz | 4.10GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9400T | 6C/6T | 1.80GHz | 3.40GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9500 | 6C/6T | 3.00GHz | 4.40GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9500E | 6C/6T | 3.00GHz | 4.20GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9500F | 6C/6T | 3.00GHz | 4.40GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9500T | 6C/6T | 2.20GHz | 3.70GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9500TE | 6C/6T | 2.20GHz | 3.60GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9600 | 6C/6T | 3.10GHz | 4.60GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9600K | 6C/6T | 3.70GHz | 4.60GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9600KF | 6C/6T | 3.70GHz | 4.60GHz | DDR4 2666 | Nonsupport |
| Intel Core i5-9600T | 6C/6T | 2.30GHz | 3.90GHz | DDR4 2666 | Nonsupport |
| Intel Core i7-6700K | 4C/8T | 4.00GHz | 4.20GHz | DDR4 1866/2133 | Nonsupport |
| Intel Core i7-8700T | 6C/12T | 2.40GHz | 4.00GHz | DDR4 2666 | Nonsupport |
| Intel Pentium G4400 | 2C/2T | 3.30GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4400T | 2C/2T | 2.90GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4400TE | 2C/2T | 2.40GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4500 | 2C/2T | 3.50GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4500T | 2C/2T | 3.00GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4520 | 2C/2T | 3.60GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4560 | 2C/4T | 3.50GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4560T | 2C/4T | 2.90GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4600 | 2C/4T | 3.60GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4600T | 2C/4T | 3.00GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G4620 | 2C/4T | 3.70GHz | DDR3 1333/1600 | Nonsupport | |
| Intel Pentium G5400 | 2C/4T | 3.70GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5400T | 2C/4T | 3.10GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5420 | 2C/4T | 3.80GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5420T | 2C/4T | 3.20GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5500 | 2C/4T | 3.80GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5500T | 2C/4T | 3.20GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5600 | 2C/4T | 3.90GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5600T | 2C/4T | 3.30GHz | DDR3 1333/1600/1866/2133 | Nonsupport | |
| Intel Pentium G5620 | 2C/4T | 4.00GHz | DDR3 1333/1600/1866/2133 | Nonsupport |
