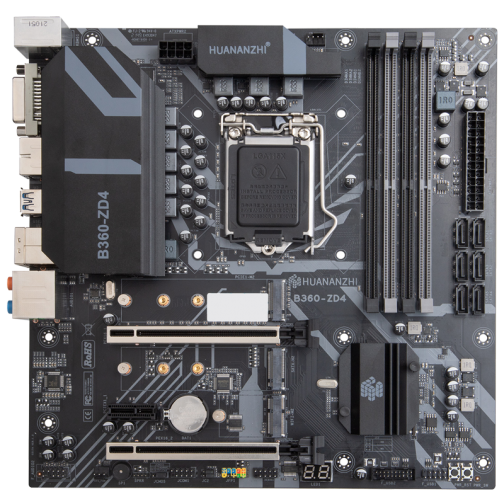

HUANANZHI B360-ZD4

Supports LGA1151 series processors
Quickly edit images and videos, quickly multitask between programs, and show your creativity.

Support NVIDIA and AMD series graphics cards
Với Integrated Graphics đầu ra màn hình DVI/HDMI/DP. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.

Support non-ECC PC memory
Support DDR4 memory, 2 channel up to 64GB

Ultra-fast PCIe M.2 (NVMe) slot design
HUANANZHI M.2 solution, provide ultra-high storage performance, it can support PCIe or SATA M.2 solid state drives.

Nonotree is your most powerful support, professional warranty inquiry system.

Category:

HUANANZHI B360-ZD4

Mainboard HUANANZHI B360-ZD4
Platform Intel® LGA1151
Memory 4 x DIMM, Max. 64GB, DDR4 2666/24002133 MHz,

Supports non-ECC Memory, Dual Channel Memory Architecture

Graphic Integrated Graphics Processor
1 x DVI port
1 x HDMI port
1 x DP port
Supports NVIDIA® and AMD® Graphics Cards
Audio Realtek®, 7.1-Channel, High Definition Audio CODEC
LAN Realtek®, 1 x 10/100/1000 Mbit/s LAN Controller(s)
Expansion Slots 1 x PCIe 3.0 x16,1 x PCIe 3.0 x4,1 x PCIe 3.0 x1
Storage 1 x M.2 Socket 3, NVMe

1 x M.2 Socket 2, SATA

1 x M.2 WIFI port(s)

6 x SATA3.0 (6GB/s) port(s)

Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s)

1 x USB 3.0 connector support additional 2 x USB 3.0 port(s)

1 x CPU Fan connector(s) (1 x 4-pin)

1 x Chassis Fan connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x POST codes display LED

Back I/O Ports 1 x PS/2 Keyboard and Mouse port

1 x LAN (RJ45) port(s)

3 x USB 2.0

2 x USB 3.0

1 x Type-C (USB 3.0 speed)

6 x Audio jack(s)

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
  1. Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
  2. Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
  3. Please go to the serial number enquiry area to check the warranty and genuine verification.
    *The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
Mainboard

HUANANZHI B360-ZD4

Platform

Intel® LGA1151

Memory

4 x DIMM, Max. 64GB, DDR4 2666/24002133 MHz,
Supports non-ECC Memory, Dual Channel Memory Architecture

Graphic

Integrated Graphics Processor
1 x DVI port
1 x HDMI port
1 x DP port
Supports NVIDIA® and AMD® Graphics Cards

Audio

Realtek®, 7.1-Channel, High Definition Audio CODEC

LAN

Realtek®, 1 x 10/100/1000 Mbit/s LAN Controller(s)

Expansion Slots

1 x PCIe 3.0 x16,1 x PCIe 3.0 x4,1 x PCIe 3.0 x1

Storage

1 x M.2 Socket 3, NVMe
1 x M.2 Socket 2, SATA
1 x M.2 WIFI port(s)
6 x SATA3.0 (6GB/s) port(s)

Internal I/O Ports

1 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x POST codes display LED

Back I/O Ports

1 x PS/2 Keyboard and Mouse port
1 x LAN (RJ45) port(s)
3 x USB 2.0
2 x USB 3.0
1 x Type-C (USB 3.0 speed)
6 x Audio jack(s)

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Driver & Manual

HUANANZHI B360-ZD4-CHIPSET

Update:2022/05/10   6.31 MBytes

HUANANZHI B360-ZD4-AUDIO

Update:2022/05/10 225.1 MBytes

HUANANZHI B360-ZD4-LAN

Update:2022/05/10  21.30 MBytes

HUANANZHI B360-ZD4-ME

Update:2022/05/10  28.54 MBytes

HUANANZHI B360-ZD4-Graphics

Update:2022/05/10  5.38 MBytes

HUANANZHI B360-ZD4-Optanesetup

Update:2022/05/10  5.38 MBytes

HUANANZHI B360-ZD4-BIOS

Update:2022/05/10  3.99 MBytes

HUANANZHI B360-ZD4 Users manual

Update:2022/05/10  64.56 MBytes

CPU Support

The following table shows the supported CPUs for this motherboard Click here to search other motherboards.
The following table shows the CPU supported by this product.
Click here to inquire about other products or use the CPU model to search.

CPU Cores/Threads Base Frequency Turbo Frequency RAM ECC RAM
