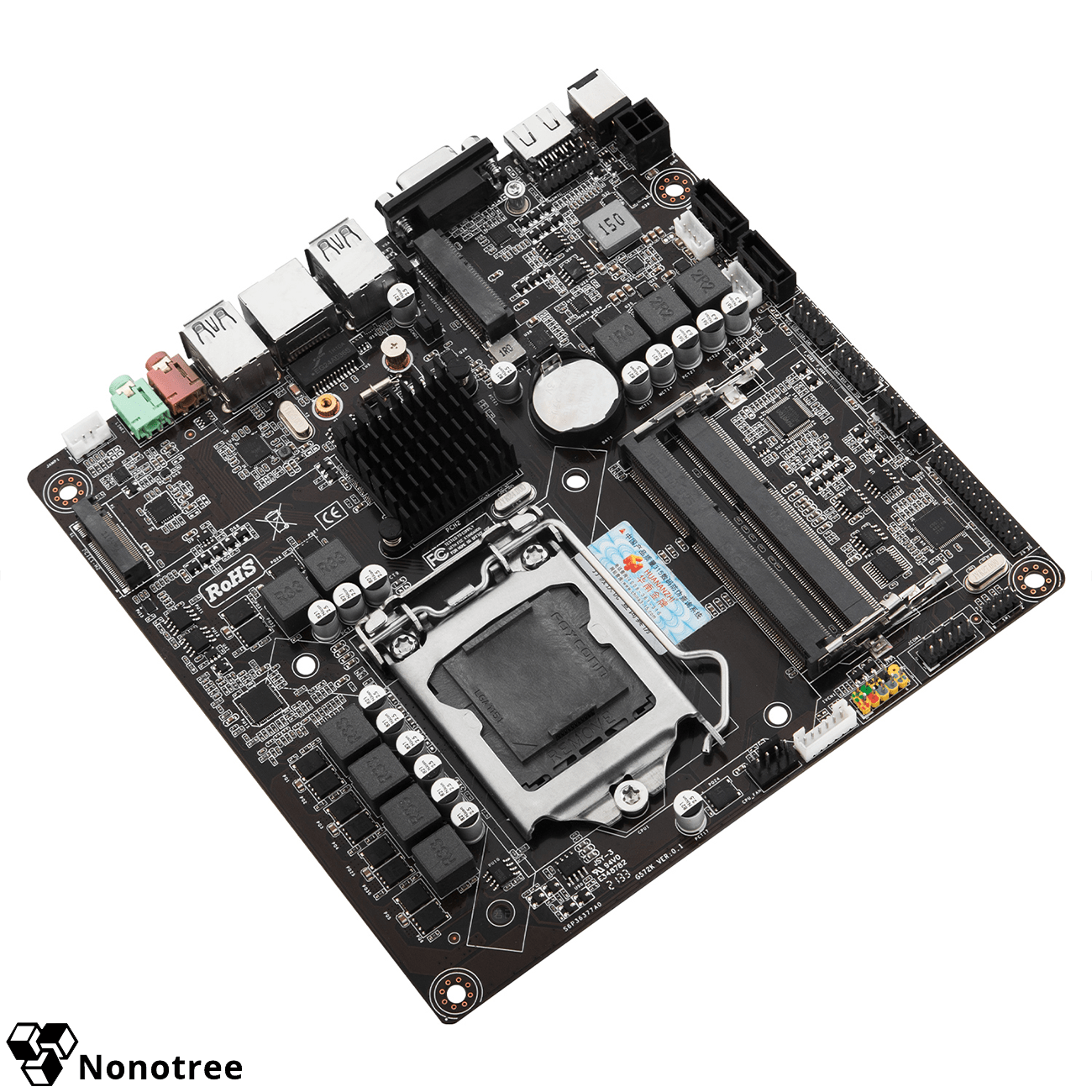

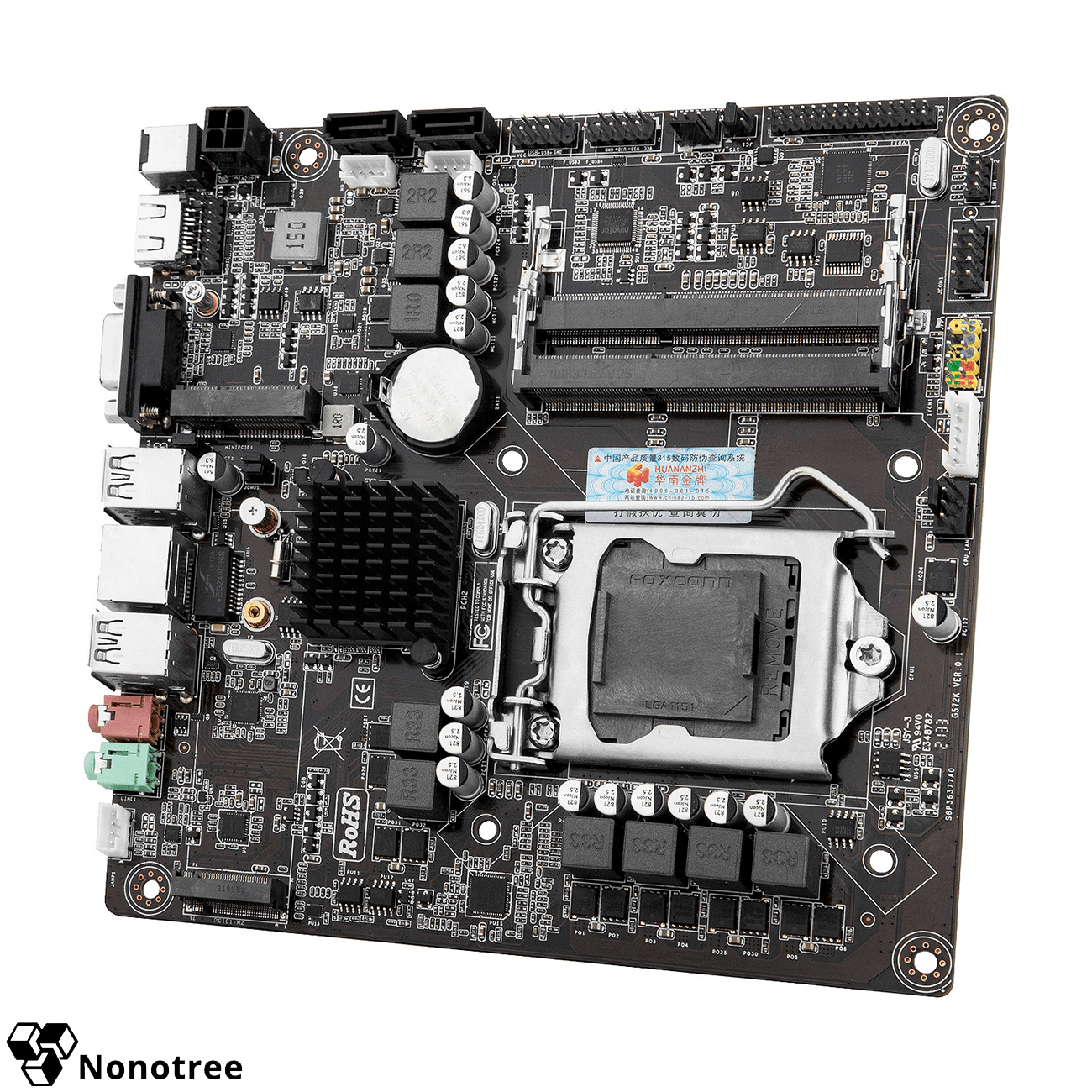

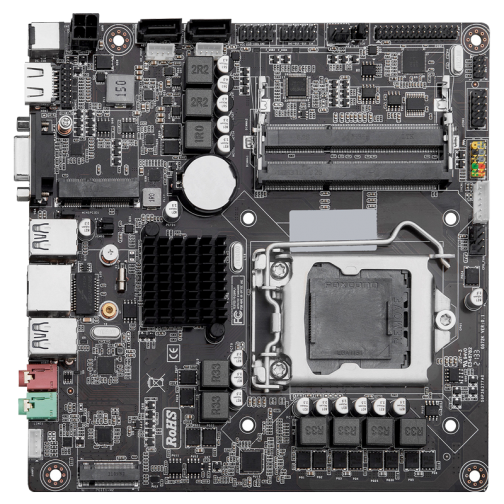

Supports LGA1151 series processors
Quickly edit images and videos, quickly multitask between programs, and show your creativity.
The cpu has Integrated Graphics output VGA/HDMI. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC laptop memory
Support DDR3 memory, 2 channel up to 16GB
Ultra-fast PCIe M.2 (NVMe) slot design
HUANANZHI M.2 solution, provide ultra-high storage performance, it can support PCIe or SATA M.2 solid state drives.
Nonotree is your most powerful support, professional warranty inquiry system.
|Memory||2 x SODIMM, Max. 16GB, DDR3 1866/1600/1333 MHz,
Supports non-ECC laptop Memory, Dual Channel Memory Architecture
|Graphic||Integrated Graphics Processor
1 x VGA port
1 x HDMI port
|Audio||Realtek®, 5.1-Channel, High Definition Audio CODEC|
|LAN||Realtek®, 1 x 10/100/1000 Mbit/s LAN Controller(s)|
|Storage||1 x SATA2.0 (3GB/s) port(s)
1 x M.2 Socket 3, NVMe
1 x M.2 WIFI port(s)
|Internal I/O Ports||2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s)
1 x DC12/19V Power connector(s)
1 x 29-pin LVDS
1 x Front panel audio connector(s) (AAFP)

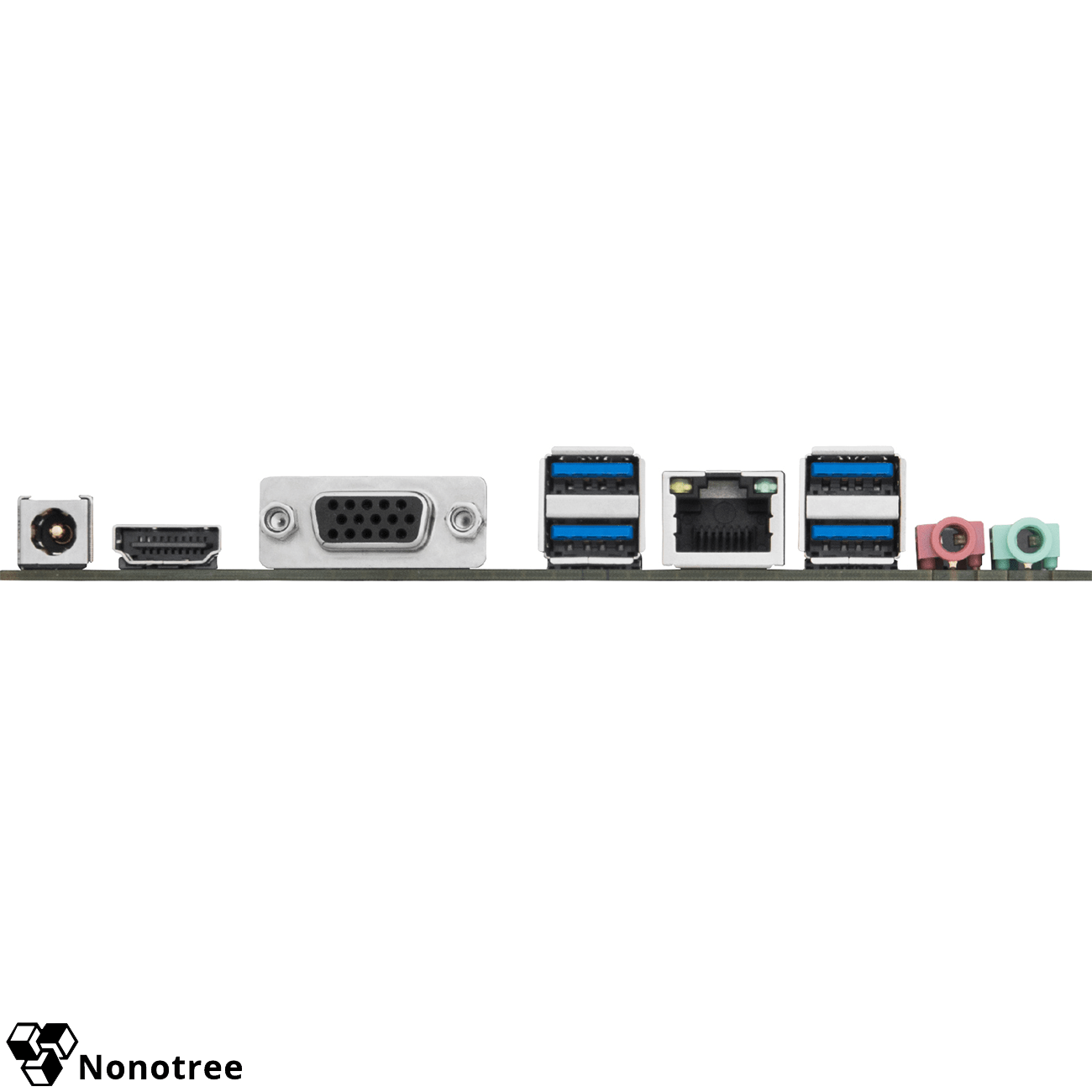

|Back I/O Ports||1 x LAN (RJ45) port(s)
4 x USB 3.0
2 x Audio jack(s)
|Form Factor||ITX Form Factor; 17cm x 17cm|
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
2 x SODIMM, Max. 16GB, DDR3 1866/1600/1333 MHz,
Integrated Graphics Processor
Realtek®, 5.1-Channel, High Definition Audio CODEC
Realtek®, 1 x 10/100/1000 Mbit/s LAN Controller(s)
1 x SATA2.0 (3GB/s) port(s)
|Internal I/O Ports||
2 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
|Back I/O Ports||
1 x LAN (RJ45) port(s)
ITX Form Factor; 17cm x 17cm
Driver & Manual
The following table shows the supported CPUs for this motherboard Click here to search other motherboards.
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.
|CPU||Cores/Threads||Base Frequency||Turbo Frequency||RAM||ECC RAM|
