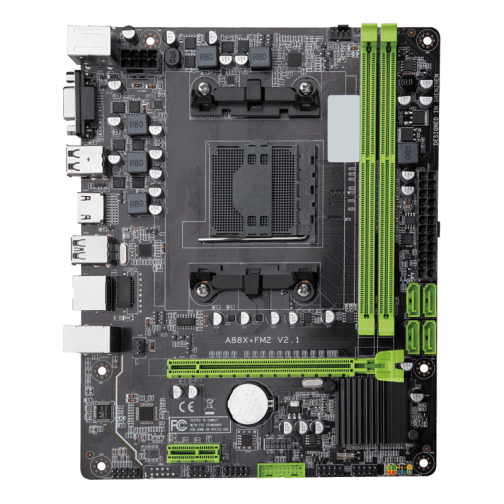

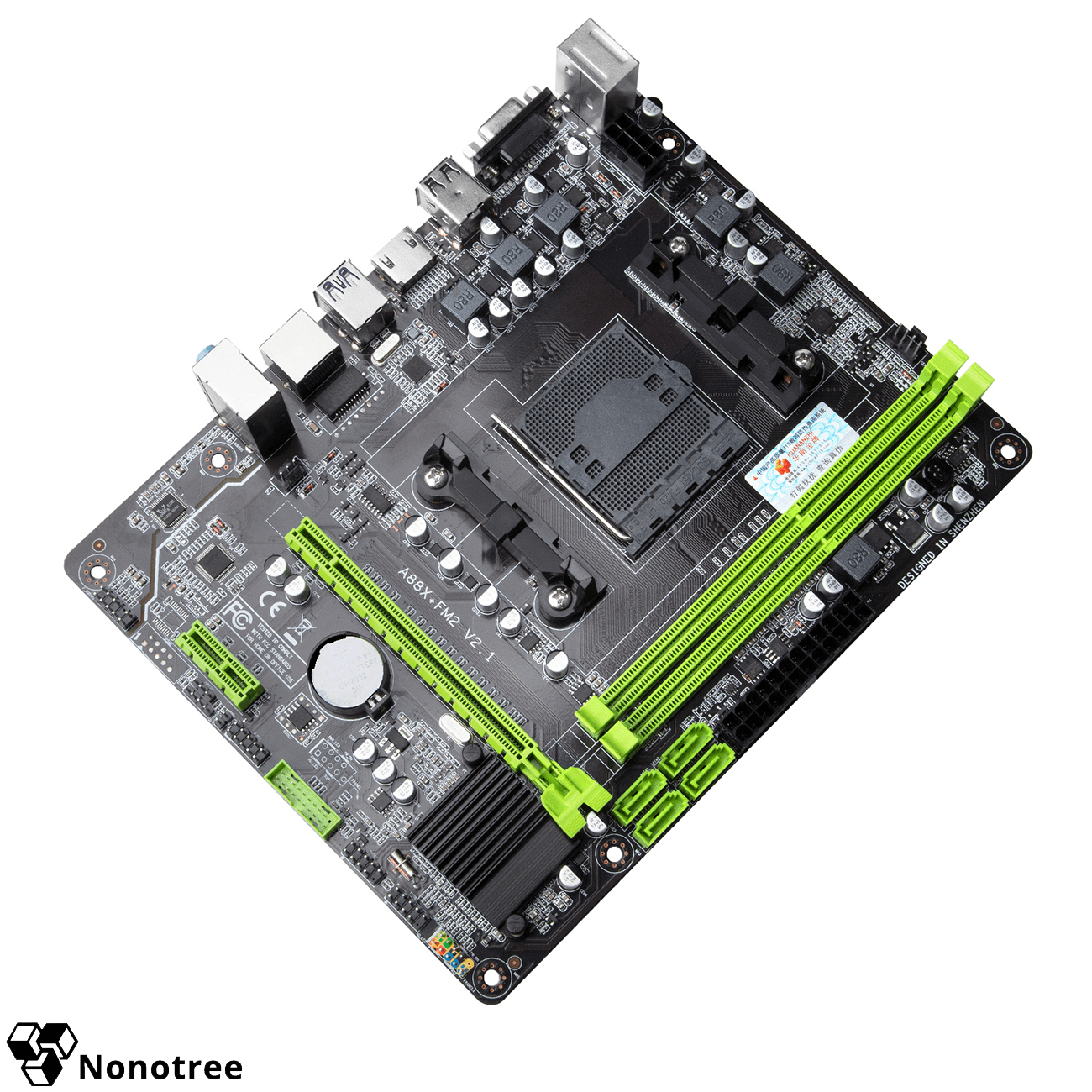

HUANANZHI A88X

Supports AMD FM2/FM2+ series processors
Quickly edit images and videos, quickly multitask between programs, and show your creativity.

Support NVIDIA and AMD series graphics cards
The cpu has Integrated Graphics output VGA / HDMI. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.

Support non-ECC PC memory
Support DDR3 memory, 2 channel up to 16GB

Nonotree is your most powerful support, professional warranty inquiry system.

Category: Mainboard

HUANANZHI A88X

Mainboard	HUANANZHI A88X
Platform	AMD FM2/FM2+
Memory	2 x DIMM, Max. 16GB, DDR3 1866/1600/1333/1066 MHz, Supports non-ECC Memory, Dual Channel Memory Architecture
Graphic	Integrated Graphics Processor 1 x VGA port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards
Audio	Realtek® ALC662 5.1-Channel, High Definition Audio CODEC
LAN	1 x 10/100/1000 Mbit/s LAN Controller(s)
Expansion Slots	1 x PCIe 3.0 x16 1 x PCIe x1
Storage	4 x SATA3.0 (6GB/s) port(s)
Internal I/O Ports	2 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP)

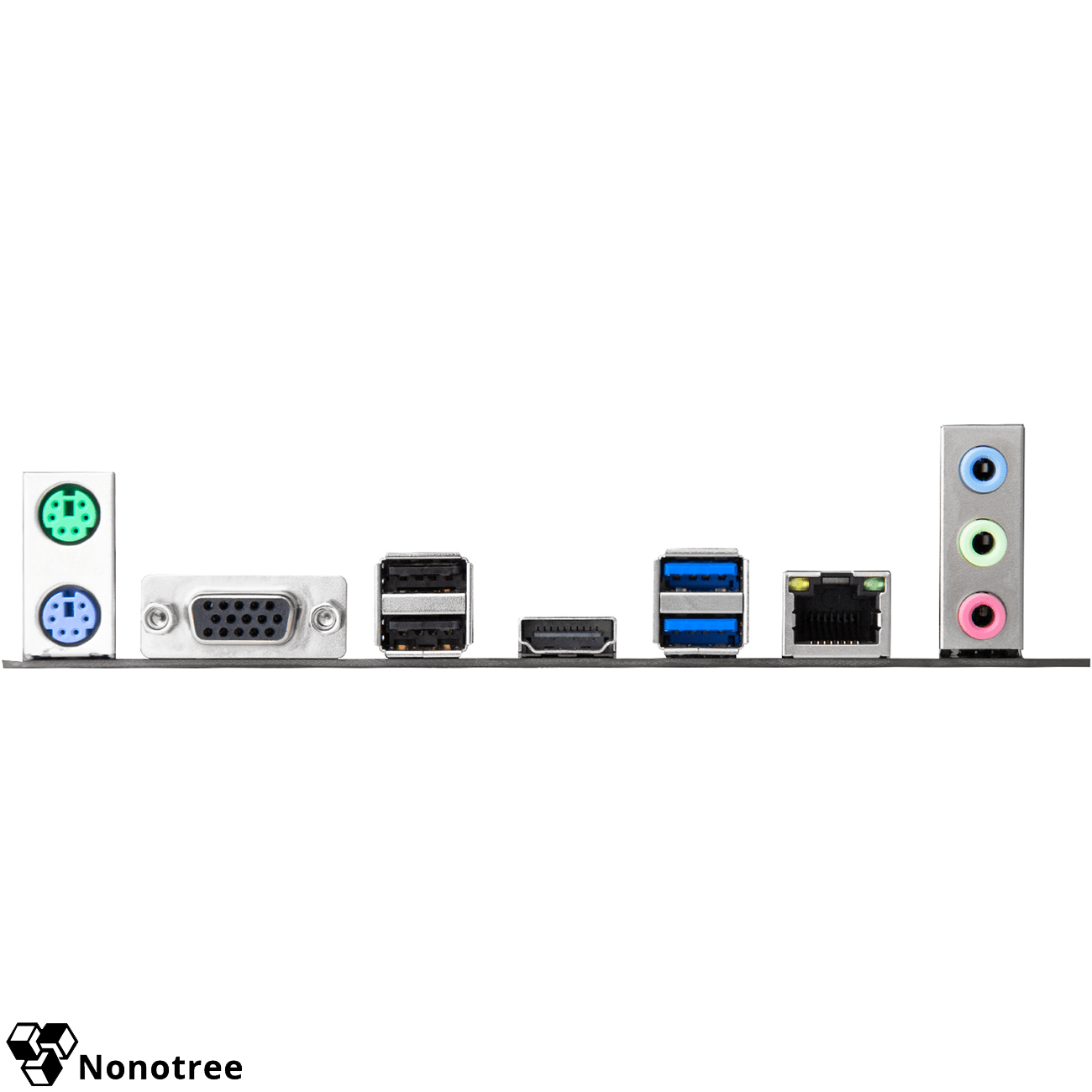

Back I/O Ports	1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 2 x USB 2.0 2 x USB 3.0 3 x Audio jack(s)
Form Factor	Micro ATX Form Factor; 21.7cm x 17cm
Packing list	1 x I/O Shield, 1 x SATA Cable, 1 x Manual

Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.

Mainboard	HUANANZHI A88
Platform	AMD FM2+
Memory	2 x DIMM, Max. 16GB, DDR3 2133/1866/1600 MHz, Supports non-ECC Memory, Dual Channel Memory Architecture
Graphic	Integrated Graphics Processor, 1 x VGA port, 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards
Audio	Realtek® ALC662 5.1-Channel, High Definition Audio CODEC
LAN	Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s)
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Storage	4 x SATA3.0 (6GB/s) port(s)
Internal I/O Ports	1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP)
Back I/O Ports	1 x PS/2 Keyboard and Mouse 1 x LAN (RJ45) port(s) 4 x USB 2.0 3 x Audio jack(s)
Form Factor	Micro ATX Form Factor; 21.7cm x 17cm
