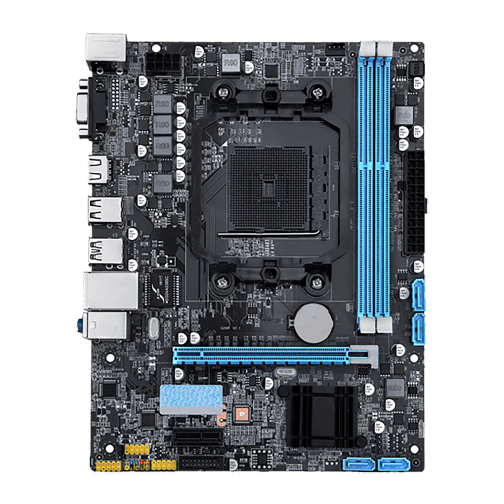

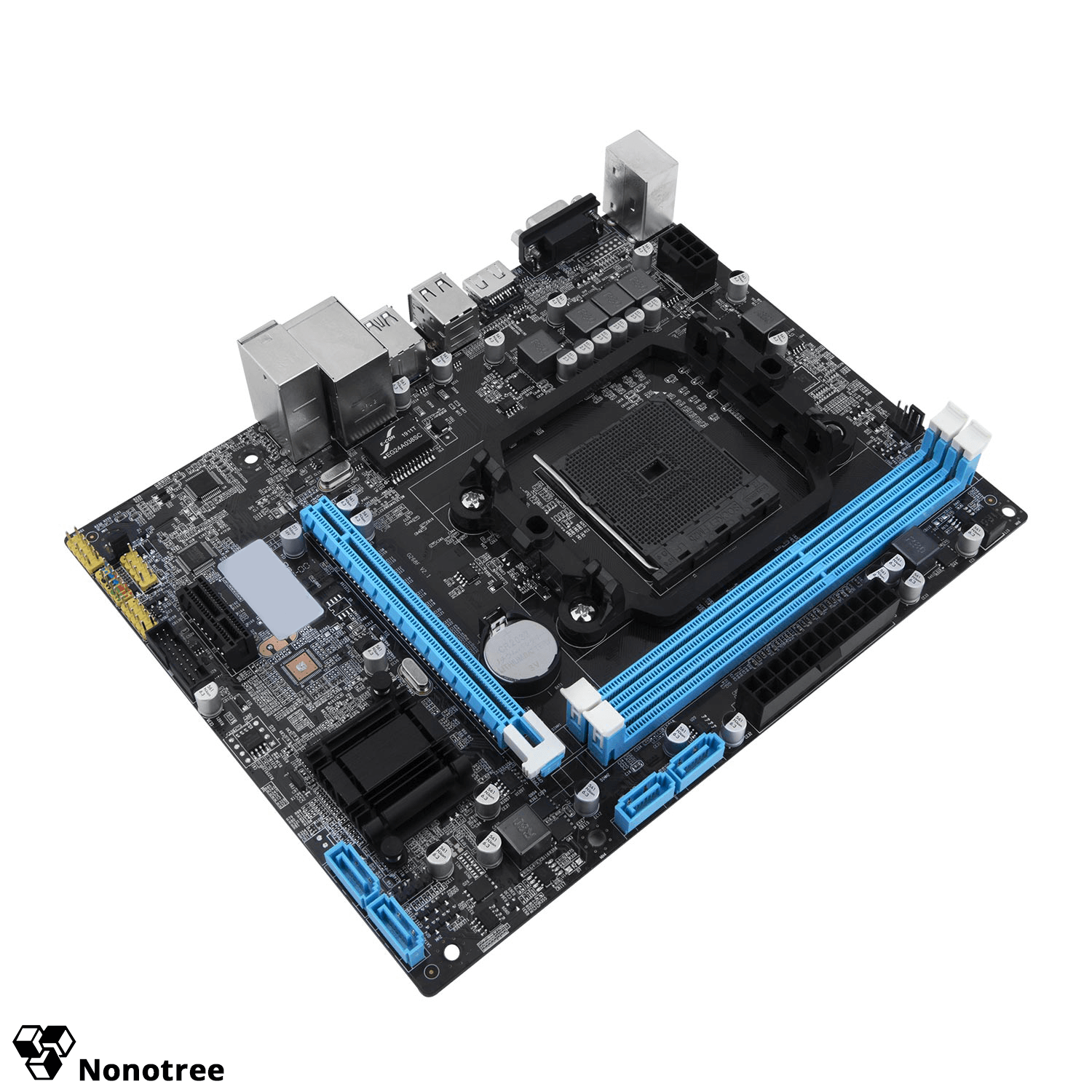

HUANANZHI A88
Supports AMD FM2+ series processors
Quickly edit images and videos, quickly multitask between programs, and show your creativity.
Support NVIDIA and AMD series graphics cards
The cpu has Integrated Graphics output VGA / HDMI. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC PC memory
Support DDR3 memory, 2 channel up to 16GB
Nonotree is your most powerful support, professional warranty inquiry system.
HUANANZHI A88
| Mainboard | HUANANZHI A88 |
| Platform | AMD FM2+ |
| Memory | 2 x DIMM, Max. 16GB, DDR3 2133/1866/1600 MHz,
Supports non-ECC Memory, Dual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor
1 x VGA port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 |
| Storage | 4 x SATA3.0 (6GB/s) port(s) |
| Internal I/O Ports | 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) |

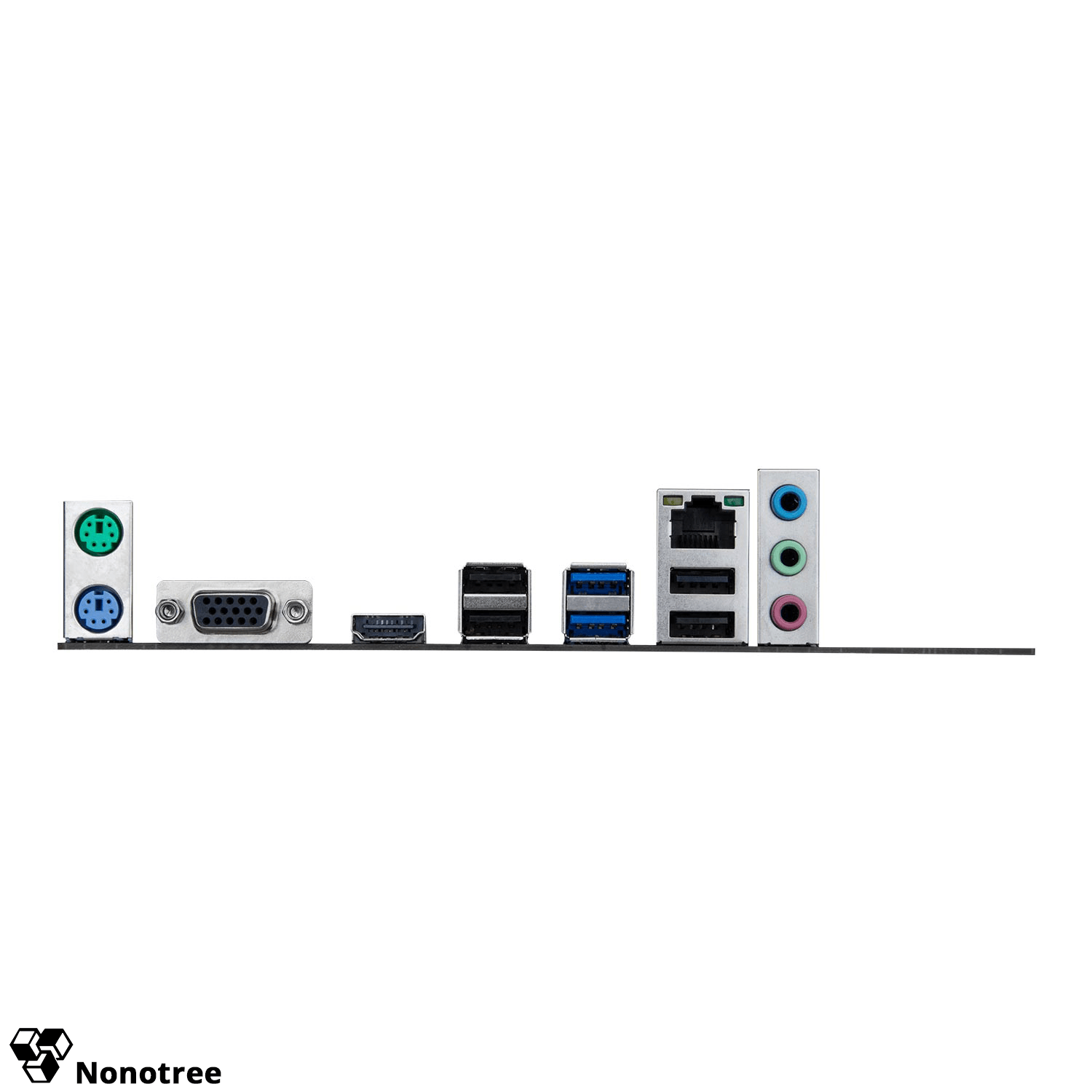

| Back I/O Ports | 1 x PS/2 Keyboard and Mouse port
1 x LAN (RJ45) port(s) 4 x USB 2.0 3 x Audio jack(s) |
| Form Factor | Micro ATX Form Factor; 21.7cm x 17cm |
| Packing list | 1 x I/O Shield, 1 x SATA Cable, 1 x Manual |
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
| Mainboard | HUANANZHI A88 |
|---|---|
| Platform | AMD FM2+ |
| Memory | 2 x DIMM, Max. 16GB, DDR3 2133/1866/1600 MHz, |
| Graphic | Integrated Graphics Processor, 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16, |
| Storage | 4 x SATA3.0 (6GB/s) port(s) |
| Internal I/O Ports | 1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse |
| Form Factor | Micro ATX Form Factor; 21.7cm x 17cm |
Driver & Manual
| HUANANZHI A88-BIOS Update：2020/11/29 1.82 MBytes |
 |
CPU Support
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.| CPU | Cores/Threads | Base Frequency | Turbo Frequency | RAM | ECC RAM |
| AMD A10-7700K | 4C/4T | 3.40GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-7800 | 4C/4T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-7850K | 4C/4T | 3.70GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-7860K | 4C/4T | 3.60GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-7870K | 4C/4T | 3.90GHz | 4.10GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-7890K | 4C/4T | 4.10GHz | 4.30GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-8750 | 4C/4T | 3.60GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-PRO 7800B | 4C/4T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-PRO 7850B | 4C/4T | 3.60GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A10-PRO 8750B | 4C/4T | 3.60GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A4 8350 | 2C/2T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A4 8350B | 2C/2T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A4 PRO 7350B | 2C/2T | 3.40GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A6-7400K | 2C/2T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A6-7470K | 2C/2T | 3.70GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A6-7480 | 2C/2T | 3.50GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A6-8550 | 2C/2T | 3.70GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A6-PRO 7400B | 2C/2T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A6-PRO 8550B | 2C/2T | 3.70GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A8-7500 | 4C/4T | 3.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport | |
| AMD A8-7600 | 4C/4T | 3.10GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A8-7650K | 4C/4T | 3.30GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A8-7670K | 4C/4T | 3.60GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A8-7680 | 4C/4T | 3.50GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A8-7690K | 4C/4T | 3.70GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport | |
| AMD A8-8650 | 4C/4T | 3.20GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A8-PRO 7600B | 4C/4T | 3.10GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD A8-PRO 8650B | 4C/4T | 3.20GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD Athlon X2 450 | 2C/2T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD Athlon X4 830 | 4C/4T | 3.00GHz | 3.40GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD Athlon X4 835 | 4C/4T | 3.10GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport | |
| AMD Athlon X4 840 | 4C/4T | 3.10GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD Athlon X4 845 | 4C/4T | 3.50GHz | 3.80GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD Athlon X4 850 | 4C/4T | 3.20GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport | |
| AMD Athlon X4 860K | 4C/4T | 3.70GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD Athlon X4 870K | 4C/4T | 3.90GHz | 4.10GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD Athlon X4 880K | 4C/4T | 4.00GHz | 4.20GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD FX 770K | 4C/4T | 3.50GHz | 3.90GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
| AMD FX 870K | 4C/4T | 3.60GHz | 4.00GHz | DDR3 1066/1333/1600/1866/2133 | Nonsupport |
