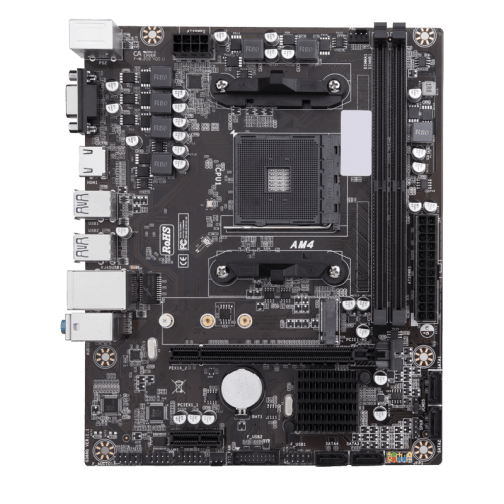

HUANANZHI A320 D4
Supports AMD AM4 series processors
Quickly edit images and videos, quickly multitask between programs, and show your creativity.
Support NVIDIA and AMD series graphics cards
The cpu has Integrated Graphics output VGA / HDMI. Help you increase the speed of execution of various tasks, accelerate your game, help you achieve a professional gaming environment.
Support non-ECC PC memory
Support DDR4 memory, 2 channel up to 32GB
Nonotree is your most powerful support, professional warranty inquiry system.
HUANANZHI A320 D4
| Mainboard | HUANANZHI A320-D4 |
| Platform | AMD AM4 1331 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 3000/2800/2600/2400/2133 MHz,
Supports non-ECC Memory, Dual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor
1 x VGA port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe x1 |
| Storage | 4 x SATA3.0 (6GB/s) port(s) 1 x M.2 Socket 3, NVMe |
| Internal I/O Ports | 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse port
1 x LAN (RJ45) port(s) 2 x USB 2.0 4 x USB 3.0 3 x Audio jack(s) |
| Form Factor | Micro ATX Form Factor; 21.7cm x 17.4cm |
| Packing list | 1 x I/O Shield, 1 x SATA Cable, 1 x Manual |
- Quality: HUANANZHI focusing on PC hardware development and production for more than 10 years, quality control and production in strict accordance with the ISO system. Please check the store for the original Factory authorization certificate. In order to prevent counterfeit and shoddy manufacturers from entering, please make sure the product have the certificate.
- Warranty: Warranty replacement within 12-36 months (In the event of a failure within the scope of the warranty, we will take back the original product. And fix or replace the same model with qualified quality function to the customer.)
- Please go to the serial number enquiry area to check the warranty and genuine verification.
*The product specifications, applications, images and information mentioned on this website are for reference only and are subject to change without notice.
| Mainboard | HUANANZHI A320-D4 |
|---|---|
| Platform | AMD AM4 1331 |
| Memory | 2 x DIMM, Max. 32GB, DDR4 3000/2800/2600/2400/2133 MHz, |
| Graphic | Integrated Graphics Processor, 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit/s LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16, |
| Storage | 1 x M.2 Socket 3, NVMe |
| Internal I/O Ports | 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse |
| Form Factor | Micro ATX Form Factor; 21.5cm x 17.4cm |
Driver & Manual
|
HUANANZHI A320 D4-CHIPSET
Update：2020/11/29 867.77 MBytes |
|
|
HUANANZHI A320 D4-BIOS
Update：2020/11/29 9.25 MBytes |
|
|
HUANANZHI A320 D4-USB3.0
Update：2020/11/29 11.31 MBytes |
|
|
HUANANZHI A320 D4 Users manual
Update：2020/11/29 64.56 MBytes |
 |
CPU Support
The following table shows the CPU supported by this product. Click here to inquire about other products or use the CPU model to search.| CPU | Cores/Threads | Base Frequency | Turbo Frequency | RAM | ECC RAM |
| AMD A10-9700 | 4C/4T | 3.50GHz | 3.80GHz | DDR4 Up to 2400 | Nonsupport |
| AMD A10-9700E | 4C/4T | 3.00GHz | 3.50GHz | DDR4 Up to 2400 | Nonsupport |
| AMD A12-9800 | 4C/4T | 3.80GHz | 4.20GHz | DDR4 Up to 2400 | Nonsupport |
| AMD A12-9800E | 4C/4T | 3.10GHz | 3.80GHz | DDR4 Up to 2400 | Nonsupport |
| AMD A6-9500 | 2C/2T | 3.50GHz | 3.80GHz | DDR4 Up to 2400 | Nonsupport |
| AMD A6-9500E | 2C/2T | 3.00GHz | 3.40GHz | DDR4 Up to 2400 | Nonsupport |
| AMD A8-9600 | 4C/4T | 3.10GHz | 3.40GHz | DDR4 Up to 2400 | Nonsupport |
| AMD Athlon 200GE | 2C/4T | 3.20GHz | DDR4 Up to 2667 | Nonsupport | |
| AMD Athlon 220GE | 2C/4T | 3.40GHz | DDR4 Up to 2667 | Nonsupport | |
| AMD Athlon 240GE | 2C/4T | 3.50GHz | DDR4 Up to 2667 | Nonsupport | |
| AMD Athlon 3000G | 2C/4T | 3.50GHz | DDR4 Up to 2667 | Nonsupport | |
| AMD Athlon X4 950 | 4C/4T | 3.50GHz | 3.80GHz | DDR4 Up to 2400 | Nonsupport |
| AMD Ryzen 3 1200 | 4C/4T | 3.10GHz | 3.40GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 3 1300X | 4C/4T | 3.50GHz | 3.70GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 3 2200G | 4C/4T | 3.50GHz | 3.70GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 3 2200GE | 4C/4T | 3.20GHz | 3.60GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 3 2300X | 4C/4T | 3.50GHz | 4.00GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 3 3100 | 4C/8T | 3.60GHz | 3.90GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 3 3200G | 4C/4T | 3.60GHz | 4.00GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 3 3300X | 4C/8T | 3.80GHz | 4.30GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 5 1400 | 4C/8T | 3.20GHz | 4.00GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 5 1500X | 4C/8T | 3.50GHz | 3.70GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 5 1600 | 6C/12T | 3.20GHz | 3.60GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 5 1600X | 6C/12T | 3.60GHz | 4.00GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 5 2400G | 4C/8T | 3.60GHz | 3.90GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 5 2400GE | 4C/8T | 3.20GHz | 3.80GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 5 2500X | 4C/8T | 3.60GHz | 4.00GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 5 2600 | 6C/12T | 3.40GHz | 3.90GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 5 2600E | 6C/12T | 3.10GHz | 4.00GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 5 2600X | 6C/12T | 3.60GHz | 4.20GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 5 3400G | 4C/8T | 3.70GHz | 4.20GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 5 3500 | 6C/6T | 3.60GHz | 4.10GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 5 3500X | 6C/6T | 3.60GHz | 4.10GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 5 3600 | 6C/12T | 3.60GHz | 4.20GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 5 3600X | 6C/12T | 3.80GHz | 4.40GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 5 3600XT | 6C/12T | 3.80GHz | 4.50GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 5 5600X | 6C/12T | 3.70GHz | 4.60GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 7 1700 | 8C/16T | 3.00GHz | 3.70GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 7 1700X | 8C/16T | 3.00GHz | 3.80GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 7 1800X | 8C/16T | 3.60GHz | 4.00GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 7 2700 | 8C/16T | 3.20GHz | 4.10GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 7 2700E | 8C/16T | 2.80GHz | 4.00GHz | DDR4 Up to 2667 | Nonsupport |
| AMD Ryzen 7 2700X | 8C/16T | 3.70GHz | 4.30GHz | DDR4 Up to 2933 | Nonsupport |
| AMD Ryzen 7 3700 | 8C/16T | 3.60GHz | 4.40GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 7 3700X | 8C/16T | 3.60GHz | 4.40GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 7 3800X | 8C/16T | 3.90GHz | 4.50GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 7 3800XT | 8C/16T | 3.90GHz | 4.70GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 7 5800X | 8C/16T | 3.80GHz | 4.70GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 9 3900 | 12C/24T | 3.10GHz | 4.40GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 9 3900X | 12C/24T | 3.80GHz | 4.60GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 9 3900XT | 12C/24T | 3.80GHz | 4.70GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 9 3950X | 16C/32T | 3.50GHz | 4.70GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 9 5900X | 12C/24T | 3.70GHz | 4.80GHz | DDR4 Up to 3200 | Nonsupport |
| AMD Ryzen 9 5950X | 16C/32T | 3.40GHz | 4.90GHz | DDR4 Up to 3200 | Nonsupport |
